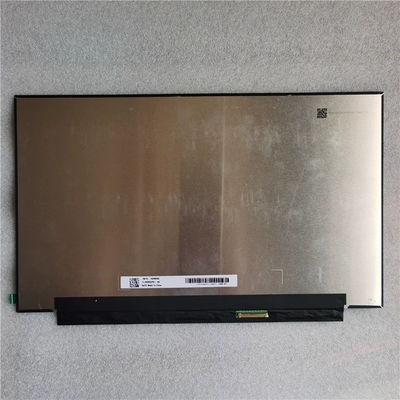

รายละเอียดสินค้า:
|
| Brand: | TIANMA | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440 210PPI | Brightness: | 300 cd/m² |
| Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | Brand | Model | TL140BDXP01 | |
|---|---|---|---|---|
| Type | LCM LTPS TFT-LCD | Used For | ||
| Screen Size | 14.0" | Alias | TMX1400 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 2560(RGB)×1440 | Dot Pitch(mm) | 0.04027×0.12081 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.12081×0.12081 (H×V) [210PPI] | |
| Mechanical Size : | Active Area(mm) | 309.27(H) × 173.97(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 315.81(H) × 197.57(V) | Depth(mm) | 2.3/2.4 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 218±21.8g | Treatment | |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 17 (Typ.)(Tr+Td); 10 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.50 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 96% | sRGB | 100% coverage |
| Adobe RGB | 88% coverage | DCI-P3 | 100% coverage | |
| Rec.2020 | 72% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 897mW (Typ.) | |||||
| Signal Type : | eDP (4 Lanes), eDP1.3 | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-040E-76 | 1 pcs | 40 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 9S6P | Life Time | - | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 2.95/3.34W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.27(W)×173.97(H) mm, outline size of 315.81(W)×197.57(H)×2.4(D) mm, net weight of 218±21.8g, shape stype of Slim (PCBA Flat, T≤3.2mm). As a SFT, Normally Black, Transmissive LCM product, TL140BDXP01 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17 (Typ.)(Tr+Td); 10 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. TL140BDXP01 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
