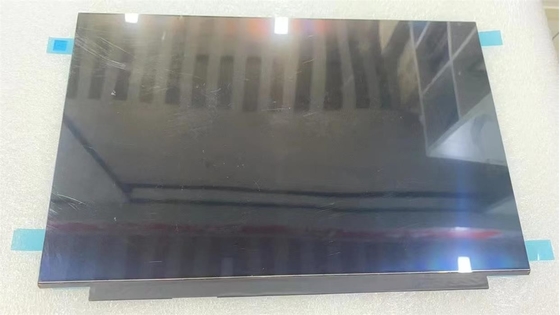

รายละเอียดสินค้า:
|
| Brand: | Samsung | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 166PPI | Luminance: | 400 cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 85 °C |
| Basic Info : | Panel Brand | Panel Model | ATNA33XC11-0 | |
|---|---|---|---|---|
| Diagonal Size | 13.3" | Application | ||
| Panel Type | AM-OLED , OLED | Model Alias | SDC4158 | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -40 ~ 85 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.051×0.153 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.153×0.153 mm (H×V) [166PPI] | |
| Mechanical Size : | Display Area | 293.76×165.24 mm (H×V) | Bezel Area | - |
| Outline Dim. | 297.46×171.79 mm (H×V) | Outline Depth | 1.48/2.12 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Other Features : | Weight | 140g (Max.) | Surface | Glare (Haze 0%) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 100000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | - | |
| Viewing Direction | Symmetry | Response Time | 1 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.18/1.33 (Typ./Max.)(13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 107% | sRGB | 100% coverage |
| Adobe RGB | 96% coverage | DCI-P3 | 100% coverage | |
| Rec.2020 | 80% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 5.57W (Typ.) |
| Signal Systerm : | eDP (2 Lanes), eDP1.4b, HBR1 (2.7G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/10V (Typ.)(VDD/VBAT) | Current Input | 217/485mA (Typ.)(IDD/IBAT) | ||
| Consumption | 0.72/4.85W (Typ.)(WDD/WBAT) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-0 | 0.5 mm | 30 pins | 1 pcs | ||
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 13 | 1 | 583×388×210 | 7.00 | 0.0475 | |
| Pallet | 156 | 12 | 1200×800×760 | N/A | 0.7296 |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 297.46(W)×171.79(H)×2.12(D) mm, with surface treament of Glare (Haze 0%), net weight of 140g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). ATNA33XC11-0 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA33XC11-0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3/10V (Typ.)(VDD/VBAT)
