LQ134R1JY01 Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY

ได้รับการรับรอง
จีน Sapientia Display Co.,LIMITED รับรอง
ความคิดเห็นของลูกค้า
เรียน Kay

—— อดัมเดวิส

ขอบคุณสำหรับบริการและผลิตภัณฑ์ที่ดีหวังว่าความร่วมมือของเราจะยาวนานยิ่งขึ้นและมีความสุข!

—— เอริควิลสัน

สนทนาออนไลน์ตอนนี้ฉัน

LQ134R1JY01 Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY

LQ134R1JY01  Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY
LQ134R1JY01  Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY LQ134R1JY01  Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY LQ134R1JY01  Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY

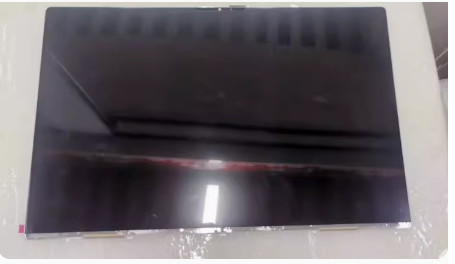

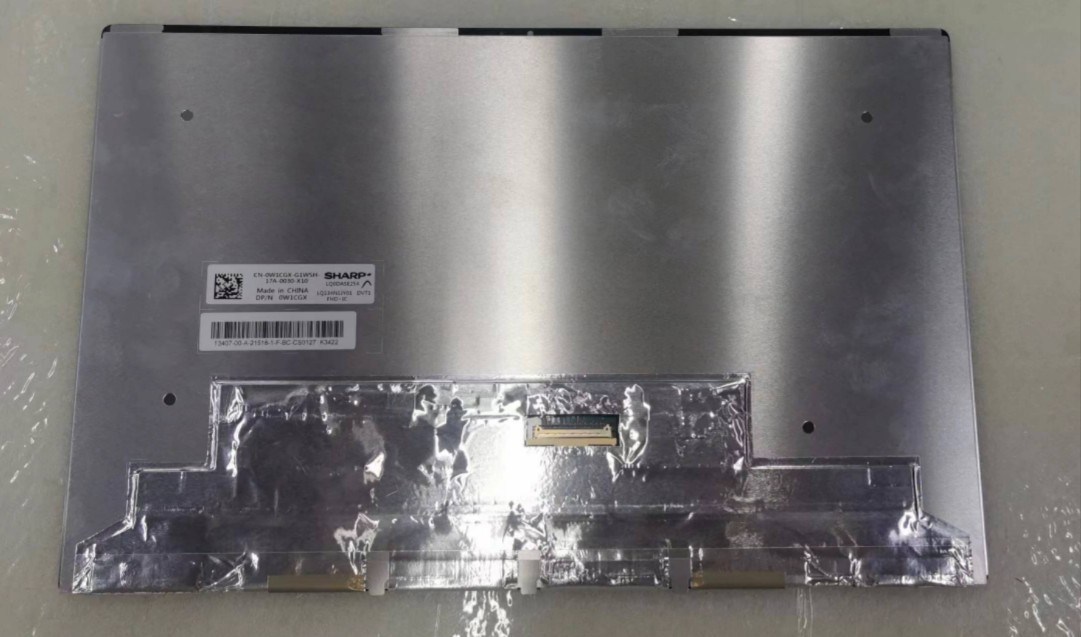

ภาพใหญ่ :  LQ134R1JY01 Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: Sharp
ได้รับการรับรอง: ISO9001
หมายเลขรุ่น: LQ134R1JY01
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 ชิ้น
รายละเอียดการบรรจุ: บรรจุมาตรฐาน
เวลาการส่งมอบ: 1-2days
เงื่อนไขการชำระเงิน: TT/PAYPAL/เวสเทิร์นยูเนี่ยน/สัญญา

LQ134R1JY01 Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY

ลักษณะ
ยี่ห้อ: หนา ขนาดเส้นทแยงมุม: 13.4"
การแก้ไข: 3840 ((RGB) × 2400 338PPI ความส่องสว่าง: 500 ซีดี/ตร.ม
มุมมอง: 89/89/89/89 (ประเภท)(CR≥10) Max. สูงสุด Ratings การให้คะแนน: อุณหภูมิการเก็บรักษา: -25 ~ 60 °C อุณหภูมิการทํางาน: 0 ~ 50 °C

Sharp LQ134R1JX41 Application Details

Basic Information :
Brand

Model
LQ134R1JX41
Type
Oxide TFT-LCD , LCM
Used For

Screen Size
Alias
-
Environment :
Storage Temp.
-25 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

Vibration
1.0G (9.8 m/s²)



Sharp LQ134R1JX41 Mechanical Details

Pixel Features :
Resolution
3840(RGB)×2400
Dot Pitch(mm)
0.025×0.075 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.075×0.075 (H×V) [338PPI]
Mechanical Size :
Active Area(mm)
288(H) × 180(V)
Bezel Area(mm)
-
Outline Dim.(mm)
-
Depth(mm)
1.8/4.27 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4 pcs) on down slugs
Other Spec :
Weight
193/208g (Typ./Max.)
Treatment
Glare (Haze 0%), Hard coating



Sharp LQ134R1JX41 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
New Mode2, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
30 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.53 (Max.)(5/13 points)
1931 Color Gamut :
NTSC Ratio
80%
sRGB
100% coverage
Adobe RGB
80% coverage
DCI-P3
83% coverage
Rec.2020
60% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ134R1JX41 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
464/627mA (Typ./Max.)
Consumption
1.53/2.07W (Typ./Max.)
Signal Type :
eDP (4 Lanes), eDP1.4b, HBR3 (8.1G/lane)
Logic Voltage
-
Interface Features :
Position

Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
0.4 mm
40 pins
1 pcs



Sharp LQ134R1JX41 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5/9/12V (Min./Typ./Max.)
Current Supply
442/600mA (Typ./Max.)
Consumption
3.98/5.4W (Typ./Max.)



whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 338 PPI. As for mechanical detail, it features active area of 288(W)×180(H) mm, with surface treament of Glare (Haze 0%), Hard coating, net weight of 193/208g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a New Mode2, Normally Black, Transmissive LCM product, LQ134R1JX41 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ134R1JX41 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)



LQ134R1JY01  Sharp 13.4" 3840(RGB)×2400  500 cd/m² INDUSTRIAL LCD DISPLAY 0
