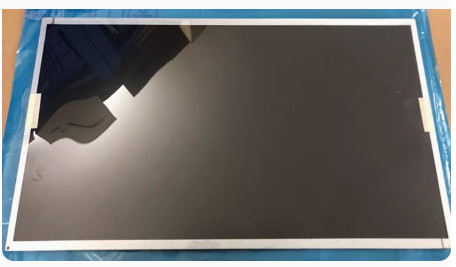

รายละเอียดสินค้า:
|
| ยี่ห้อ: | กรมสรรพากร | ขนาดเส้นทแยงมุม: | 21.5" |
|---|---|---|---|
| การแก้ไข: | 1920(RGB)×1080, FHD 102PPI | ความสว่าง: | 0 ซีดี/ตร.ม |
| มุมมอง: | 89/89/89/89 (ประเภท)(CR≥10) | สิ่งแวดล้อม: | Operating Temp.: 0 ~ 50 °C ; อุณหภูมิในการทำงาน: 0 ~ 50 °C ; Storage Temp.: -20 ~ 6 |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| MV215FHB-N30 | a-Si TFT-LCD , CELL | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 21.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.08265×0.24795 mm | 0.24795×0.24795 mm [102PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 476.064×267.786 mm | - | 483.464×278.676 mm | 1.32 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Plate Thickness |
| Flat Rectangle | 16:9 (W : H) | Landscape type | 0.50+0.50 mm | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 400g (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | ADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 92% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmittance : | 5.6% (Typ.)(with Polarizer) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.5/1.2A (Typ./Max.) | 5.0V (Typ.) | 2.5/6.0W (Typ./Max.) | ||||

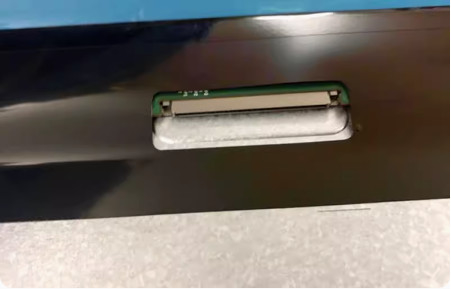

| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS100-L30R-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| EPO Box | 20 | 1 | 610×460×118 | N/A | 0.0331 | |
| Pallet | 640 | 32 | N/A | N/A | N/A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 483.464(W)×278.676(H)×1.32(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 400g (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, MV215FHB-N30 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight. MV215FHB-N30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
